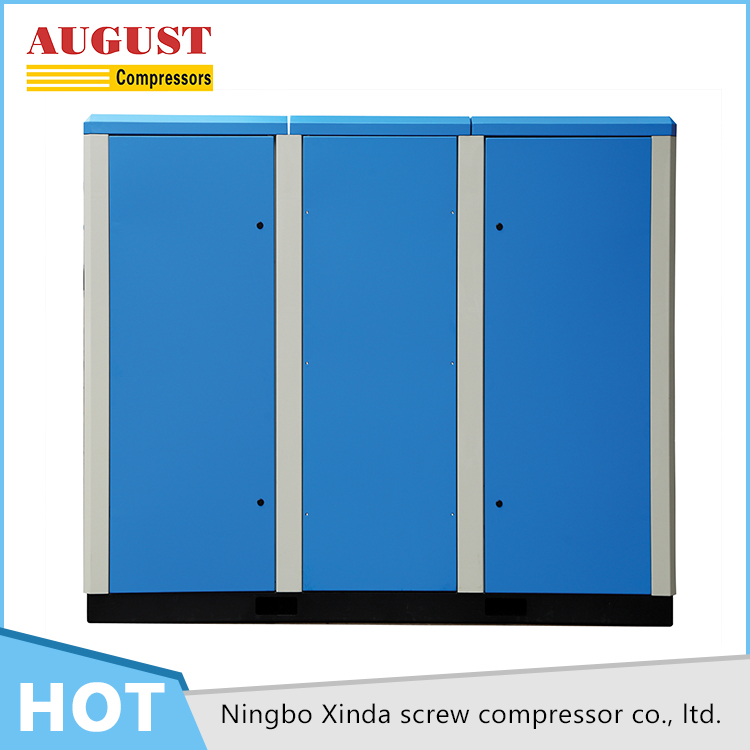

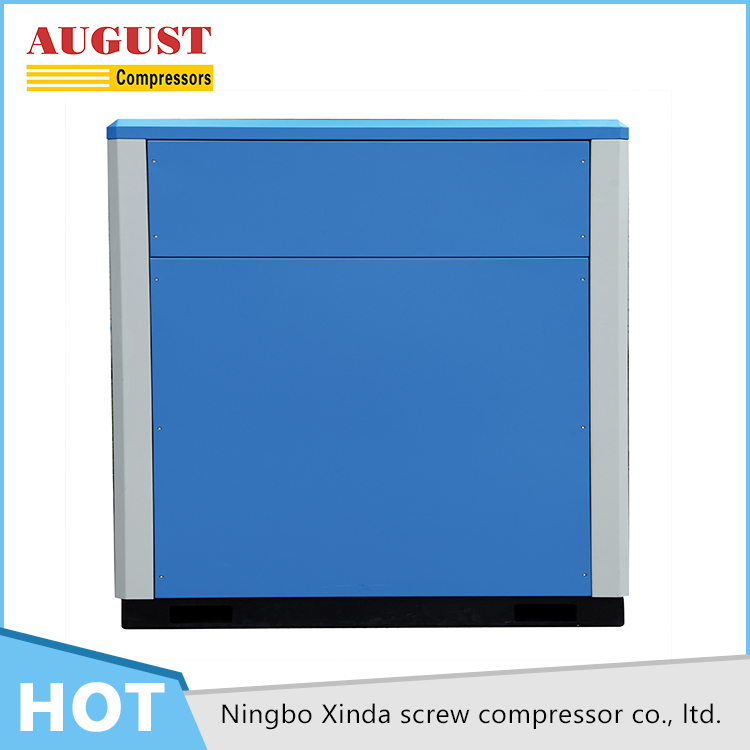

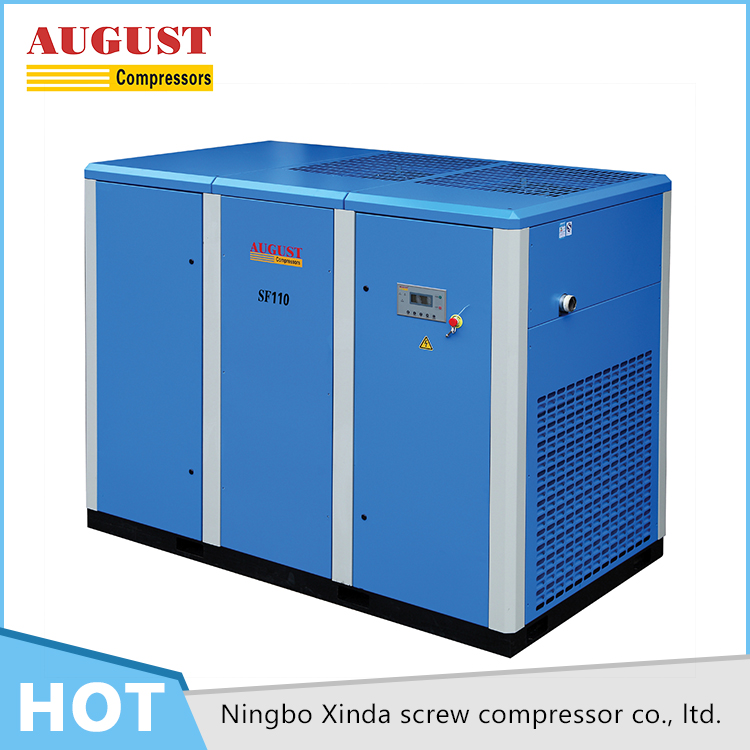

110KW 150HP stationary air cooled screw air compressor
Product Description
SF110A 110KW/150HP 7 bar AUGUST stationary air cooled screw
air compressor 742 cfm
Model | SF110A | SF110B | SF110C | SF110D |
Free air delivery(m3/min) | 21.0 | 17.5 | 14.5 | 20.0 |
cfm | 742 | 618 | 512 | 706 |
l/s | 350 | 292 | 242 | 333 |
Discharge pressure(MPa) | 0.7 | 1.0 | 1.3 | 0.8 |
bar | 7 | 10 | 13 | 8 |
psig | 102 | 145 | 189 | 116 |
Ambient temperature(℃) | -5~+40 | |||
Cooling method | Air cooling | |||
Air supply temperature (℃) | Less Than Ambient temperature +15℃ | |||
Drive method | Direct Coupling Drive | |||
Start method | Star delta start | |||
Noise dB(A)±3 | 80 | |||
Power (kW/HP) | 110/150 | |||
Overall dimension (mm) | 2500×1450×2000 | |||
Weight (kg) | 2500 | |||
Air supply out (Inch) | 2 1/2" |
IE3 Version Compliance: | |||||||||||||||
15 | 18.5 | 22 | 30 | 37 | 55 | 75 | 90 | 110 | 132 | 160 | 185 | 200 | 220 | 250 | |
Motor Power | |||||||||||||||
(kw) | |||||||||||||||
92.1 | 92.6 | 93 | 93.6 | 93.7 | 94.3 | 94.7 | 95.2 | 95.4 | 95.6 | 95.8 | 95.7 | 95.8 | 95.8 | 95.8 | |
Efficiency | |||||||||||||||

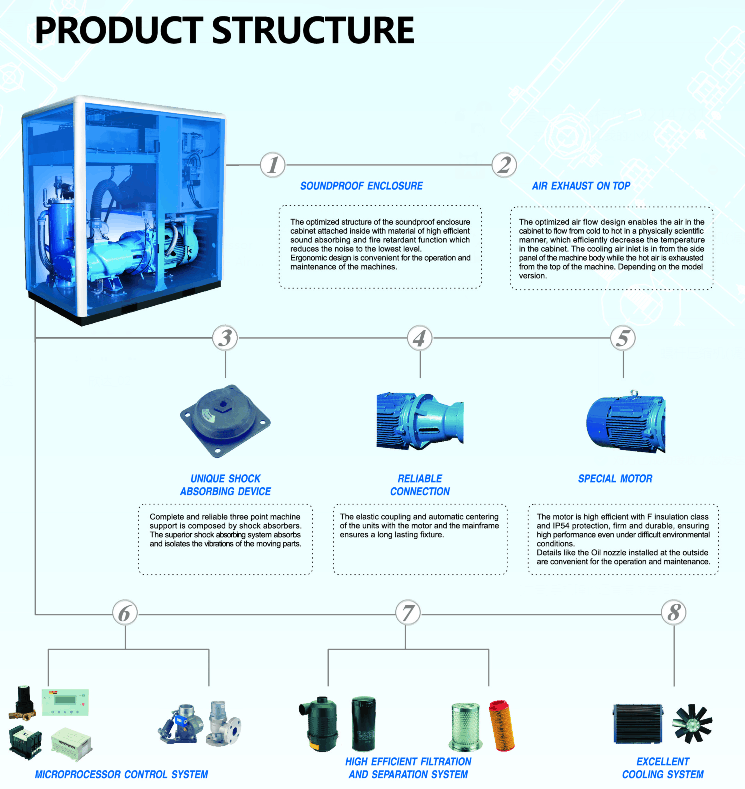

- Air Cooled
- Twin Screw Single Stage Air End – August- Brand
- 5 Year Rotor Warranty
- 45,000-50,000 Working Hours Engineered Lifetime
- Skf Explorer Bearings (Mainly)
- Energy Saving Micro Control System, Fully Automated Operation
- Easy Maintenance
- Low-Noise Operation, Closed Cabinet Structure, Noise Reducing Dumping Mats Made Of Fire-Retardant Materials
- Belt Drive
- Drawing For Reference Only
- Efficient, Safe And Reliable Fully Enclosed Motor Drive (Ip54, F Class / Ip55 Optional)
- Energy Saving Air End 5:6 Helix
- Networkable Link Between Compressors / Grouping With On-Line, Remote Monitoring And Dsc Network Functions
- High Precision Heavy Duty Intake Filter 1Μm, 99.9% Efficiency
- Optimized Oil Separation System Residual Oil Rate 1-3Mg/M3
- Low Speed Air End Operation
- Powerful Low Noise Exhaust Fan / On Top Exhaust
- Automatic Control Of Functions / Maintenance Indicator
- English Language Display, Easy Operation, Running Status At A Glance, Runningreal-Time Monitoring Data
- Pressure And Temperature Control And Protection
- Start Up Protection ( Current Spike Free)
- English Language Display / English Language Manual
1. Q: What is used for?
A: Machining, mining, shipbuilding, water conservancy, or energy automobile, cement, textile, food,
medicine, highway, railway or urban construction
2. Q: What is the Pressure?
A: We can supply pressure 7 / 8 / 10 / 13 BAR
3. Q: Air capacity (motor power )
A: From 5.5 KW to 250 KW
4. Q: Protection grade
A: IP54
5. Q: Certificate?
A: ISO 9001:2008, ISO 14000:2004, CE
6. Q: Delivery time?
A: Regular products 30 days
7. Q: What is the packing?
A: Wooden case
8. Q: Warranty
A: 18 months related parts warranty and 2 years air end warranty
