Electronic Pressure Transmitter 4 To 20ma BP93420-IN

Electronic Pressure Transmitter 4 To 20ma BP93420-IN

    Payment Type: T/T
    Terms of Trade: FOB,CFR
    Min. Order: 1 Piece/Pieces
    Delivery Time: 7 Days
    Packaging: carton package
    Productivity: 5000 pieces per month
    Brand: Hengtong
    Transportation: Air
    Place of Origin: Baoji city,Shan'xi province,China
    Supply Ability: 5000 pieces per month
    Certificate: CE
    HS Code: 9026201090
    Port: Xi'an

Basic Info

Model No.: BP93420-IN

Type: Normal Pressure Transmitter

Structure Type: Diffused Silicon Pressure Transmitter

Measuring Medium: Gas

Accuracy Grade: 0.2G

Pressure range: 0.001MPa~35MPa

IP Rating: IP65

Certification: CE

Customized: Customized

Product Description

BP93420IN Pressure transmitter
Description
BP93420IN pressure transmitter uses HT series piezoresistive silicon oil-filled isolation film sensor as the signal measuring element. Signal processing circuit located in the stainless steel housing, can convert sensor signal into standard output signal. All the products through components and semi-finished products testing, finished products burn-in select, are with stable and reliable performance.
Features
Wide measurement range, Full stainless steel.
Protection:IP65
Marking : ExiaIICT6
Various output signal,Scene adjustable.
CE Certification
Application:
Compatible with 316LSS,noncorrosive gases & liquids
Applied to the refrigeration system, pneumatic systems and other automatic detection system
Specification

Measurement Range

0~35KPa...~100MPa

Proof pressure

≤1.5X rated pressure or 110MPa, which is less

Pressure type

Gauge, absolute , or sealed pressure

Accuracy

±0.25%(typical) ±0.5%(Max.)

Long-term stability

±0.1%F.S/year(typical) ±0.2%F.S/year(Max.)

Temperature Error- Zero

±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)

Temperature Error -Span

±0.03%F.S/℃(≤100KPa) ±0.02%F.S/℃(>100KPa)

Operating Temperature Range

-20℃~80℃

Storage Temperature Range

-40℃~120℃

Power supply

15~28VDC(intrinsic safe type supplied by safety barrier)

Output signal

4~20mA; 0~10/20mA; 0/1~5/10VDC

Pressure port

M11×1.25 female thread, or customized

Housing material

1Cr18Ni9Ti stainless steel

Diaphragm material

316L

O-ring

Fluororubber

Cable

polyethylene

Insulation resistance

100MΩ,100VDC

Housing protection class

IP65

Dimension

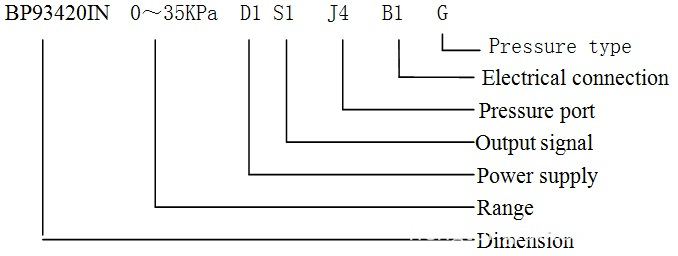

Ordering example



Ordering note:

1. Media must compatible with wetted part.

2. Explosion proof type products are without Display meter.

3. To ensure the products can working reliable, we suggest that customer install lightning protection device and make sure products & power are earthed.

4. Special requirement, such as strong shock, moment vibration, strong electromagnetism, radio frequency interference ,please consult us.

Warranty:

Pressure transmitters have a limited one-year warranty to the original purchaser. Hengtong will replace or repair defective products free of charge. This warranty does not apply to any units have been modified, misused, neglected .
